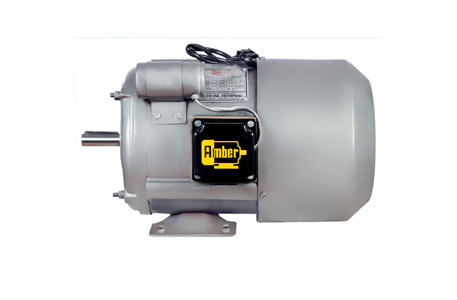

Single Phase AC brake Motors

Single Phase AC brake Motors

Single phase AC Brake motors offered by Amber consist of AC Electromagnetic Fail Safe Brake Unit mounted on the non-drive end of the motor and coupled directly to the shaft of the motor. Amber Single phase DC Brake motors are available in all the three types (PSC, CSIR and CSCR) of single phase motors.The brake in Single phase AC Fail Safe brake motors will apply whenever the power to the brake is cut off.

These motors are availed with or without cooling fan based on the application and requirement. Application of AC Three phase brake motors are in lifts, hoists and other applications where the frequency of switching the brake On-Off is very low. The major care to take while operating AC Fail Safe Brake motors is to check that power to motor and brake are cut off simultaneously otherwise the motor or brake may get damaged.


Product specification

  • Range :0.37 to 1.5 KW
  • Frame :IEC 63 to 112M
  • Poles :2 & 4
  • Mounting : Foot (B3), Flange (B5), Face (B14) and combinations
  • Brake Torque :Upto 65 Nm
  • Protection : IP 54
  • Insulation : F Class.
  • Voltage : 230 V, 110 V or as per requirement
  • Frequency : 50 Hz/ 60 Hz or as per requirement
  • Duty :S1 & S8
  • Enclosure : TENV & TEFC.
  • Houding Body : Cast Iron
