Three Phase IE2 Electric Motor Manufacturer

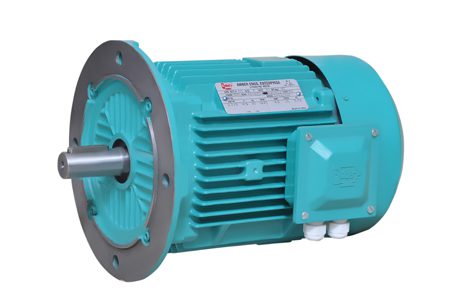

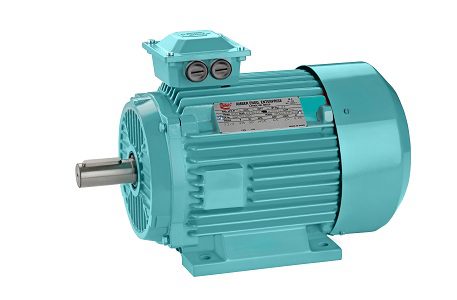

AO Series Eff2 motors are Electric Motors with Standard Efficiency in accordance with IS 12615. All AO Series motors ranging from 71 to 132M are heavy duty, stout constructed and rugged motors completely manufactured and tested with latest available technology within our factory premises. Amber EFF2 motors are equipped with best CRNO magnetic lamination sheets, appropriately lubricated double sealed ball bearings and EN8 material grounded shafts.

ensure vibration free working as well as decrease chances of maintenance and give a longer life to the motor. These motors are wounded with modified polyester enameled copper wire (IS 13730, Part 03, Thermal Class 155°C) and insulation is Class F with permissible temperature rise limited to Class B which allows 25°C reserve thermal capacity. Bearings used in these motors being appropriately lubricated double sealed make sure that there are no frictions generated which may electrically as well as mechanically harm the motor. In AN Series (90 to 132M Frame) motors there is major flexibility of mounting the connection box on any of the three sides on request.
