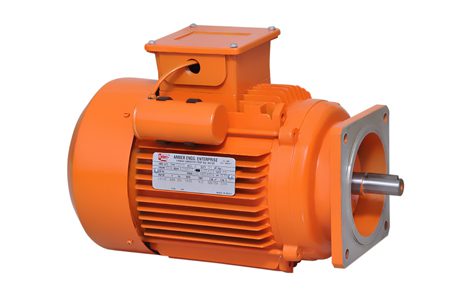

Manufacture Single Phase Capacitor for Start Motors

Product Details

Range:

0.37 to 2.2 KW

Frame :

IEC 90S to 132M

Poles :

2, 4 & 6

Mounting :

Foot (B3), Flange (B5), Face (B14) and combinations

Protection :

IP 55

Insulation :

0.09 to 30 KW

Voltage :

415 V, 380 V, 220 V or as per requirement

Frequency :

50 Hz/ 60 Hz or as per requirement

Duty :

Enclosure :

TEFC

Ambient Temperature:

50°C

Temperature rise:

Class ‘B’ (80ºC)

Bearings :

SKF Double Sealed Ball Bearings

Service Factor :

1 to 1.15

Housing Body :

Cast Iron

Fill This Form to Connect

Manufacture Single Phase Capacitor for Start Motors

Single Phase Capacitor Start Induction Run (CSIR) Motors offered by Amber are a type of split phase motors which consists of a starting capacitor connected to the starting or auxiliary winding series through a centrifugal or electronic switch. Since the capacitor is in series with the start circuit, it creates more starting torque, typically 200 to 400% of rated load. The application of these motor is wider due to higher starting torque and lower starting current.

The CSIR Motors are used for compressors, pumps, refrigeration, air conditioning equipments and other hard to start loads. Capacitor Start Motors are generally termed as “Work Horses” of the general purpose single phase induction motors All Amber Split Phase motors are supplied in clockwise direction as viewed from the drive end shaft.

Product Specification

The primary goals of the Total Quality Management (TQM) project are to enhance product quality, reduce defects, and foster a culture of continuous improvement.

Cast Iron Enclosure

Insulation : F Class
Voltage :230 V, 110 V or as per requirement
Frequency :50 Hz/ 60 Hz or as per requirement
Duty :S1
Enclosure :TENV,TEFC & DPFC
Ambient Temperature:50°C
Temperature rise:Class ‘B’ (80ºC)
Bearings :SKF Double Sealed Ball Bearings
Standard :IS 996

Aluminium Enclosure

Range : 0.37 to 1.5 KW
Frame : IEC 90S to 100L
Poles : 2 & 4
Mounting : Foot (B3), Flange (B5), Face (B14) and combinations
protection : IP 55
Insulation : F Class
Voltage :415 V, 380 V, 220 V or as per requirement
Frequency :50 Hz/ 60 Hz or as per requirement
Duty :S1
Enclosure :TEFC
Ambient Temperature:50°C
Temperature rise:Class ‘B’ (80ºC)
Bearings :SKF Double Sealed Ball Bearings
Standard :1 to 1.05
